$57.85 per ea
In Stock

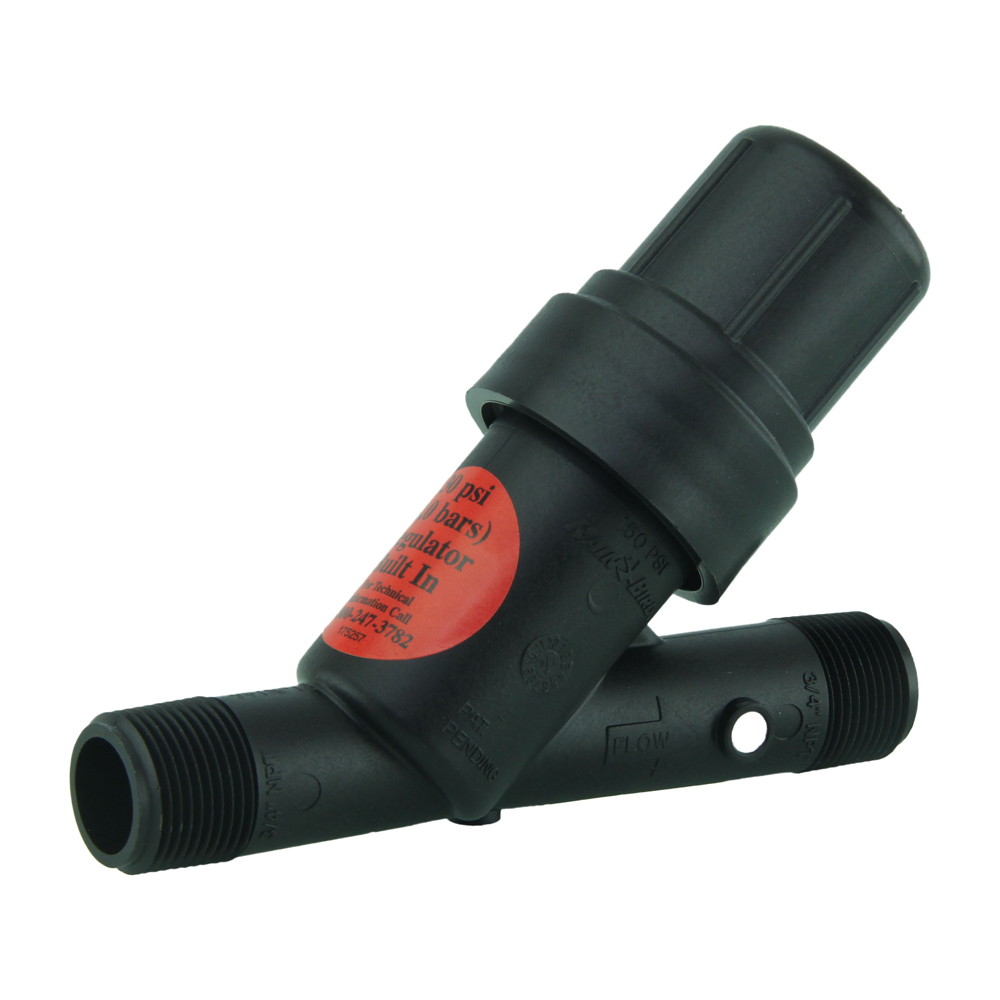

Rainbird Pressure reducer / filter

Calculate Shipping

  • Unique, compact unit that combines filtration and pressure regulation in one piece for protection of downstream components in a low-volume irrigation system.
  • Reduces the number of components in a control zone, making it smaller and easier to install. More control zones can fit in one valve box!
  • Combination unit reduces the number of connections, making installation easier and faster.
  • Increased reliability - fewer parts and fewer threaded connections mean less chance of a leak both at installation and over the life of the system.

(753810020583)

  • Static RBY filter regulates pressure to a nominal 30 psi (2.0 bar).
  • PF RBY Filter Cap has sealing O-ring and unthreads to provide access to the filter element for easy cleaning.
  • 30 psi pressure regulator is integrated into the filter body.
  • Robust body and cap are made of glass-filled polypropylene and provide 150 psi (10.3 bar) pressure rating.
  • Works with all valves to create a simple, efficient control zone.
  • Comes with 200 mesh (75 micron) screen pre-assembled (replacement filter elements are available for RBY filter).

Operating Range

  • Flow: 0.8 to 18.9 l/m
  • Inlet pressure: 20 to 150 psi (1.4 to 10.3 bar)
  • Regulated pressure: 30 psi (2.1 bar)
  • Filtration: 200 mesh (75 micron)
SKU 753810020583
Brand Rainbird
Shipping Weight 0.1290kg
Shipping Width 0.110m
Shipping Height 0.150m
Shipping Length 0.050m
Shipping Cubic 0.000825000m3
Unit Of Measure ea
