Rain Bird Solenoid Valve DVF
Rain Bird 25mm DV vavle with Flow Control.
Rain Bird 25mm DVF Automatic Inline Diaphragm Valve - the industry leader for over 25 years. The Rain Bird DVF valve is the premium valve product chosen by more professionals than any other valve on the market.
Calculate Shipping

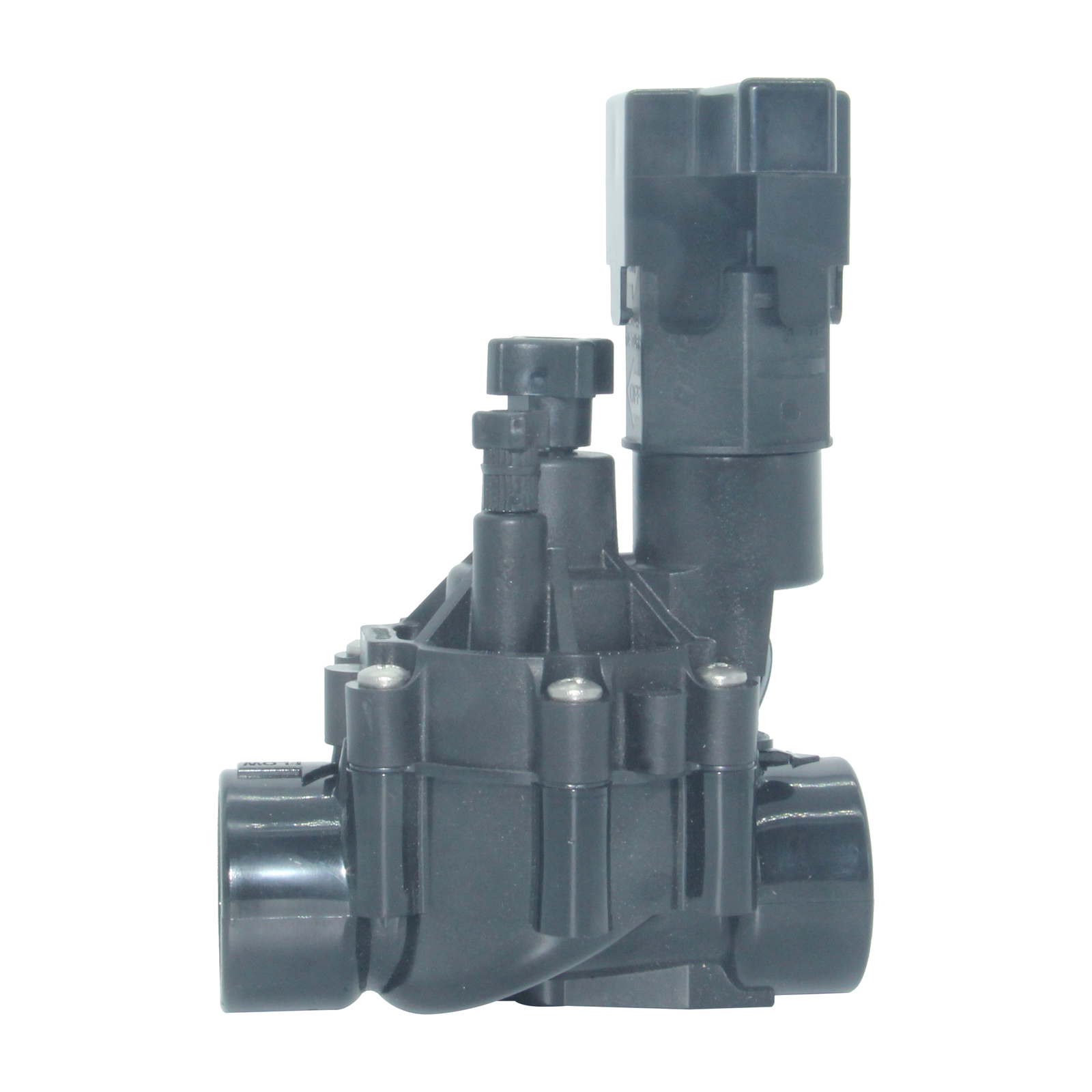

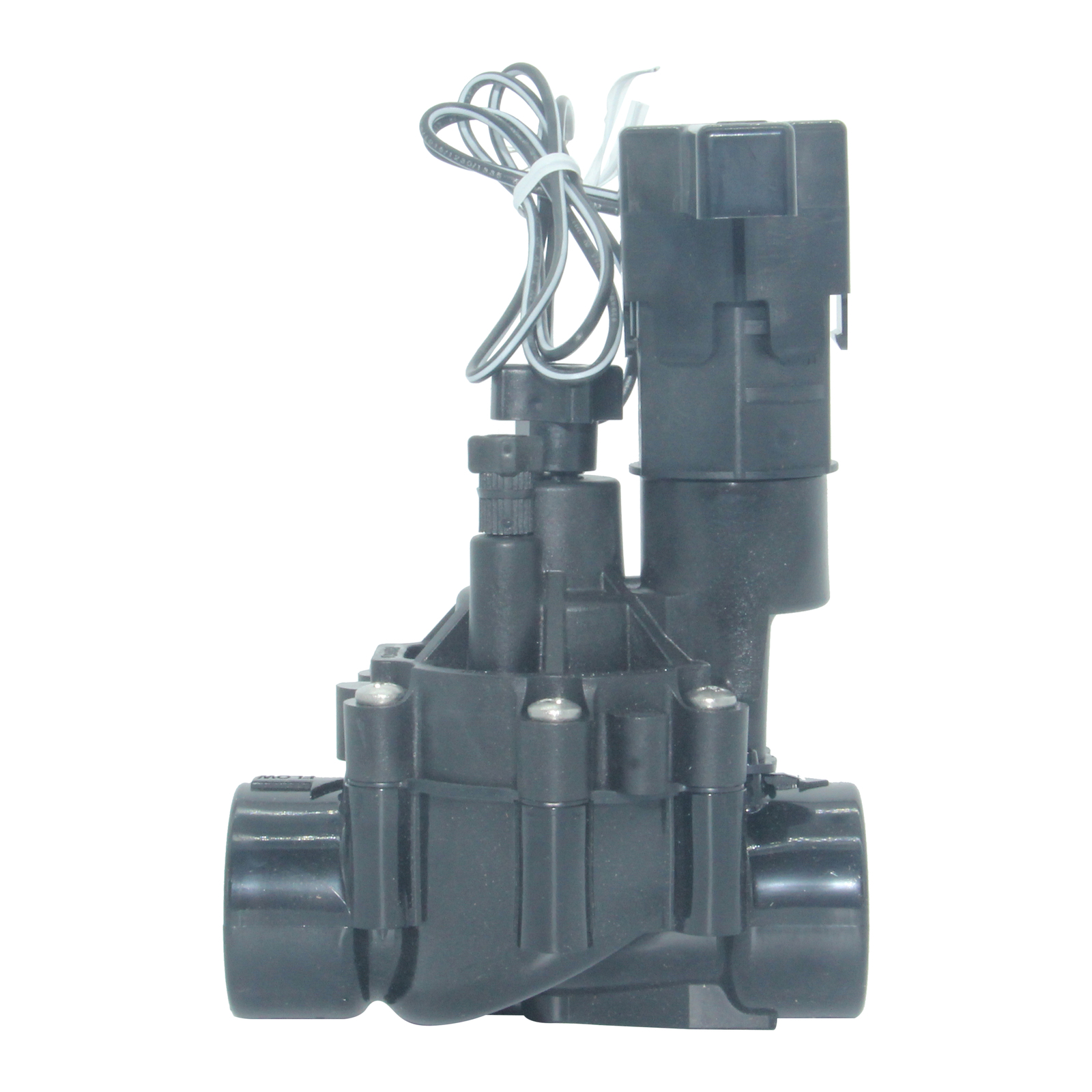

Rain Bird 25mm DVF Automatic Inline Diaphragm Valve - the industry leader for over 25 years
The Rain Bird DVF valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.
Features and Benefits
- Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
- Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
- Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
- Unique, easy-to-turn patented pressure assisted flow control mechanism
- External bleed to manually flush system of dirt and debris during installation and system start-up
- Internal bleed for spray-free manual operation
- Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers
- Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
- Unique, easy-to-turn patented pressure assisted flow control mechanism
(B70311)
- Pressure: 15 to 150 psi (1,0 to 10,4 bar)
- 100-DVF Flow Control Model: 0.2 to 40 gpm (0,05 to 9.085 m3/h; 0,01 to 2,52 l/s); For flows below 3 gpm (0,68 m3/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream.
- Water temperature: Up to 43°C
- Ambient air temperature: Up to 52°C
- 24 VAC 50/60Hz (cycles per second) solenoid power requirement: 0.450A inrush current; 0.25 A holding current
- Solenoid coil resistance: 38 Ohmschro
- Height : 14.2 cm
- Length: 11.1 cm
- Width: 8.4 cm
| SKU | B70311 |
| Brand | Rain Bird |
| Shipping Weight | 0.3950kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.125m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.001687500m3 |
| Unit Of Measure | ea |
