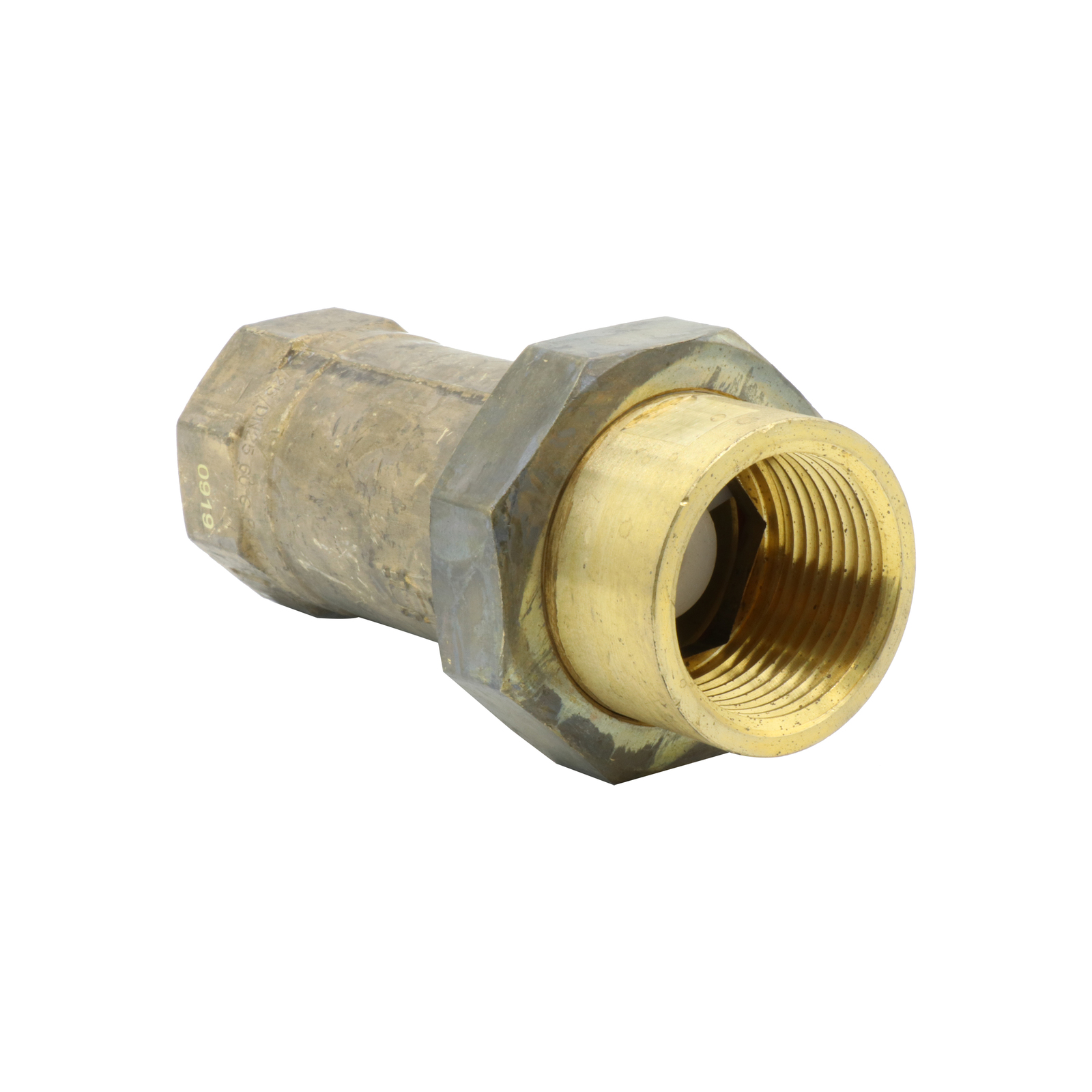

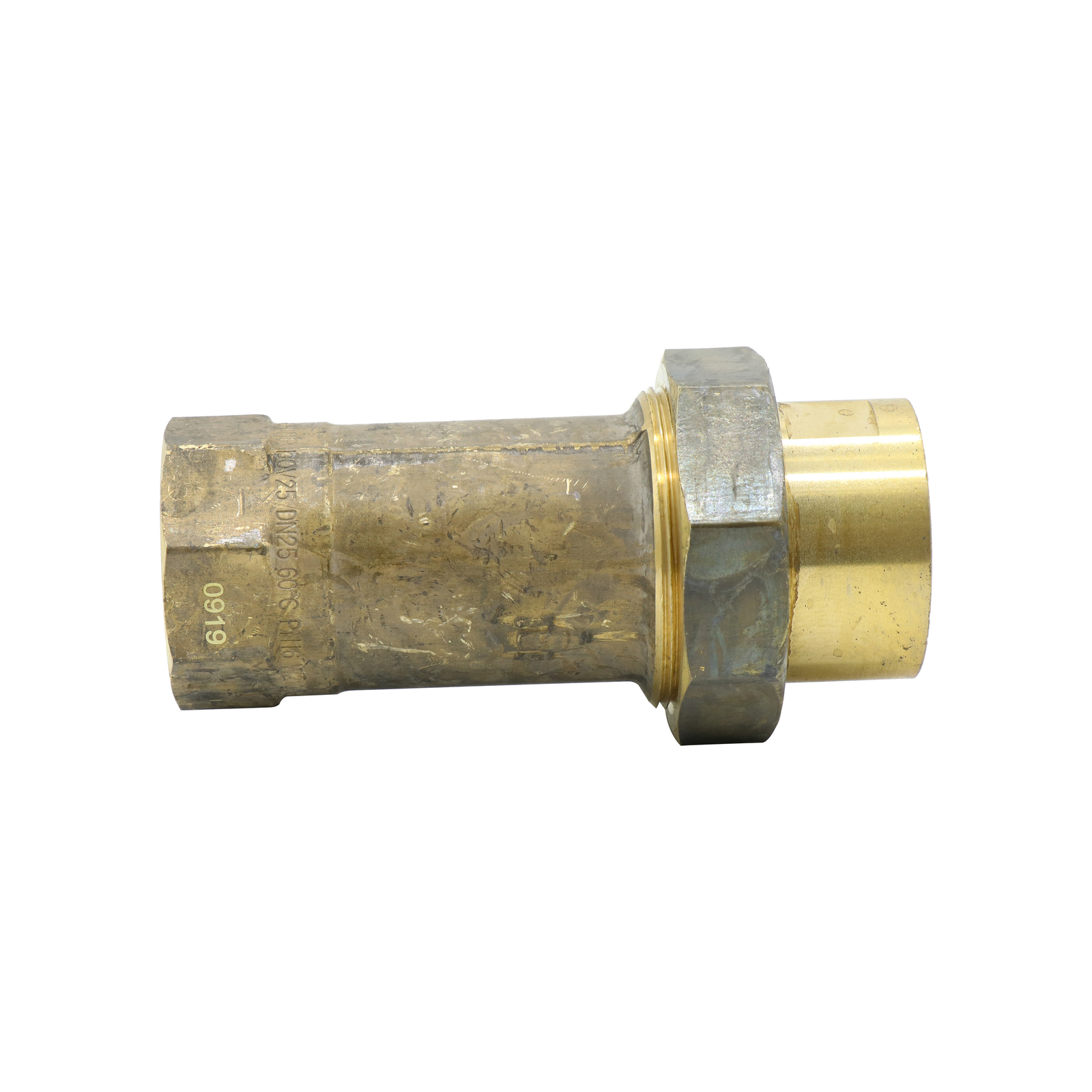

Dual Check Valve Female 25mm
$46.62
per ea
In Stock
Dual Check Valves are utilised for protection from cross contamination of non potable water with potable water. They are used in low hazard conditions such as rain water tank systems and domestic meter connections.
Calculate Shipping
Dual Check Valves are utilised for protection from cross contamination of non potable water with potable water. They are used in low hazard conditions such as rain water tank systems and domestic meter connections.
Features and Benefits
- Watermark approved
- DR Brass
- Double check valve assembly for improved flow
- Compact design
- Protects against back flow and back siphonage
- Suitable for vertical or horizontal installations
- 100% factory tested for sealing operation
- Tested and certified to AS/NZS 2845.1
(DOV25)
- Working temperature 0°C to 60°C
- Maximum working pressure 1200kPa
- Min. working pressure 60kPa
- Not to be used on hot water installations
- Length: 103mm
- Height: 56mm
| Part | Material |
|---|---|
| Bonnet | DR Brass |
| Washer | Fibre |
| Nut | DR Brass |
| Body | DR Brass |
| Check Valve | POM |
| SKU | DOV25 |
| Shipping Weight | 0.4430kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.045m |
| Shipping Length | 0.045m |
| Shipping Cubic | 0.000222750m3 |
| Unit Of Measure | ea |
